This product is ordered directly from Forge Motorsport please allow 2-3 days for delivery

This will NOT work with the OEM intercooler. This product will only work with aftermarket intercoolers with an outlet size of 63-67mm (Cold Side).

It works flawlessly with our Hyundai i30N MK3.5 Intercooler, Hyundai Veloster N Facelift Intercooler (including DCT), and our Hyundai Kona N Intercooler.

Supplied with a durable black powder coated finish
Minimal airflow disruption
Increased diameter giving increased flow compared to OEM
Mandrel bent single piece aluminium pipework
CNC machined billet couplers
No engine check lights (EML)
Lifetime warranty

After already developing many performance upgrades for the Hyundai I30N & Veloster N, the Forge Motorsport engineers have found another area for improvement on the Hyundai’s hot hatch. This time it is the boost pipe which runs from the outlet of the intercooler, to the throttle body (cold side).

When looking at the OE hard pipe it was clear to see there was room for improvement. We increased the bore diameter by 20%, which in testing resulted in a faster spool up and a crisper power delivery. We developed a 66mm internal diameter mandrel bent alloy hard pipe to compliment the transition of smooth air from the cold side of the intercooler, which also matched the size of the OEM throttle body perfectly. Accompanied with fluro lined high quality silicone joiners, this upgrade is the perfect addition to any highly tuned engine.

Alloy billet CNC machined bosses are welded in-house to the mandrel bent pipe work by our highly skilled fabricators, so that all the original attachments fit perfectly. When compared to the OE hose the improvements are clear to see, the inlet bore diameter has now been increased from 55mm to 66mm internal diameter.

An increase in diameter of the Forge pipe work allows for a greater air flow, which in-turn, maximises the volume of air being forced into the engine. This has the benefit of improving both performance and efficiency, especially on vehicles running aftermarket software. This is a must have product for anyone trying to achieve the maximum performance from their I30N/Veloster N/Kona N.

We have also incorporated a 1/8^th NPT water meth/nitrous boss into the design that is housed directly in front of the throttle body for maximum efficiency. This assists tuners and owners in hot climates to keep inlet air temperatures on the safer side while pushing the 2.0 Hyundai engine to its limits, for a maximum power output.

Why not add gold tape to the alloy pipe to further reflect any heat soak from the engine and keep inlet charge temperatures as low as possible. The Gold tape comes on a 5metre roll, allowing you to apply it to your Forge Motorsport product.

This product is designed, developed, and manufactured entirely in Great Britain and is covered by our worldwide lifetime warranty

Complimentary Products

Our uprated valve for the Hyundai i20N, Kona N, and the Veloster N Line has been expertly manufactured and designed in the UK, meaning we can provide the industry leading valve for your vehicle. Specifically designed for the Hyundai, this valve can be used either as a fully atmospheric (blow off) valve, or a recirculating valve!

This billet aluminium oil cap will replace your OEM one, leaving your engine bay with a premium and high quality aesthetic. This cap is available in a choice of body colour (black or polished) and a choice of cap top insert (black or polished). This perfectly compliments your i230N!

The FMTIA10 is proven to benefit the engines performance. With one of the weak links on the i30N and intake system being the restrictive aluminium inlet pipe we found something more was needed on stage 1 and 2 tuned vehicles. The results speak for themselves.

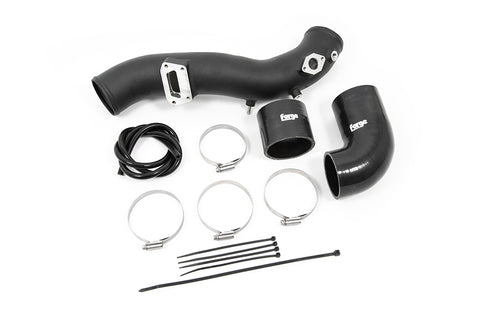

Forge Motorsport Boost Pipe for the Kona N, Hyundai i30N MK3.5 Facelift, and Veloster N Facelift
